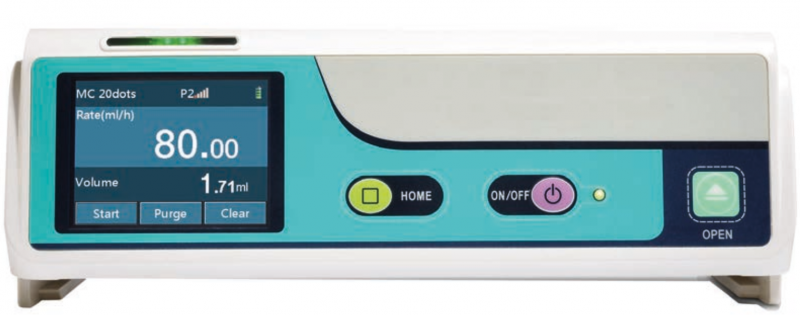

Syringe Pump
FEATURE
| Dimension | : 244 (W) x 74(H) x 164 (D) mm |
| Weight Classification Screen |
: About 1.6 kg (including battery) : Type CF, Class I, IPX2 : 2.4" LCD touchscreen, brightness 10 levels adjustable, 7 colors selectable |
Compatible IV Set : All syringes of 5 ml, 10 ml, 20 ml, 30 ml, 50 ml conform to the standart
SPECIFICATION
Infusion mode : Rate, Time, Weight, Sequence, Relay mode, Loading Dose, Trapesia, Micro, TIVA
Infusion rate range : 0.1 - 100.0 mL/h or (5 ml syringe) 0.1-900.0 ml/h (30 ml syringe)
0.1 - 300.0 mL/h or (10 ml syringe) 0.1-2000.0 ml/h (50 ml syringe)
0.1 - 600.0 mL/h or (520 ml syringe) 0.1-900.0 ml/h (30 ml syringe
Increment : 0.10 - 99.99 ml/h, minumum increment 0.01 ml/h 100-999.9 ml/h, minumum increment 0.1 ml/h
1000 - 2000 ml/h, minumum increment 1 ml/h
VTBI Range : 0.1 - 99.99 minumum increment 0.01 100-999.9 (minumum increment 0.1)
1000 - 9999 (minumum increment 1)
| Preset time | : 00:00 - 99:59 (h:m) adjustable, step by 1 min |
| Accumulated volume : 0 - 99999,99 ml | |
| Accuracy KVO rate |
: Mechanical accuary: ≤±1%. Accuary including syringe: ≤±2% : 0.1 - 5.0 mL/h adjustable, step by 0.01 mL/h, default rate: 1 mL/h |
Bolus rate
| : 0.1 - 100.0 mL/h (5 ml syringe) 0.1 - 900.0 mL/h (30 ml syringe) |
0.1-300.0 ml/h (10ml syringe) 0.1-2000.0 ml/h (50ml syringe) |
3 bolus ways selectable: Automatic/Manual/Rapid quantitative Bolus
Purge rate : 100.0 mL/h (5 ml syringe) 300.0 ml/h (10ml syringe) 600.0 ml/h (20 ml syringe)
900.0 mL/h (30 ml syringe) 2000.0 ml/h (50ml syringe)
Occlusion level : 11 levels selectable, 225 mmHg - 975 mmHg
